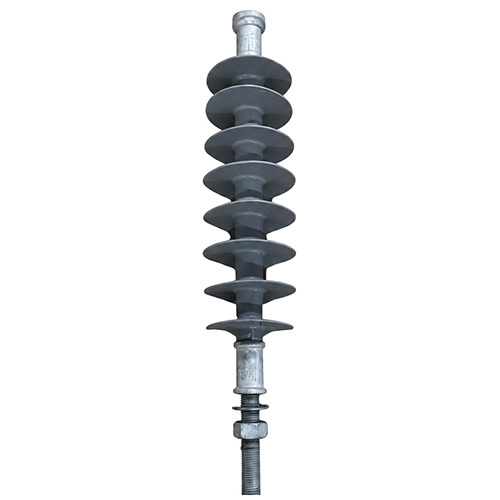

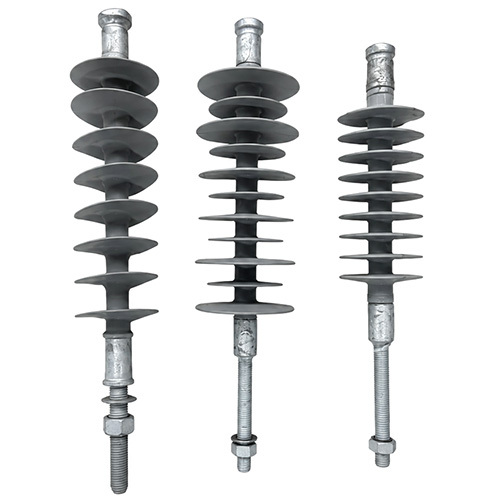

33 kV Pin Polymer Insulator

Get a Price/Quote

33 kV Pin Polymer Insulator Specification

Installation Guideline
Mount on pin; tighten all hardware to manufacturers recommended torque

Feature
Lightweight, High Mechanical Strength, Anti-tracking, Hydrophobic

Surface Treatment
UV Resistant Silicone coating

Layer
Single core with multiple sheds

Coating Type
Silicone Rubber Housing

Density
2.1 Gram per cubic centimeter(g/cm3)

Size
Length: approx. 380 mm

Thermal Conductivity
0.2-0.4 W/mK

Product Type
Pin Type Polymer Insulator

Material
Polymer (Silicone Rubber Housing with Fiberglass Core)

Rated Voltage
33 kV

Tensile Strength
>10 kN

Width
120 mm (typical)

Thickness
45 mm (core diameter approx.)

Application
Overhead Transmission and Distribution Lines

Breakdown Voltage
>130 kV (Power frequency withstand voltage)

Heat Conductivity
0.2-0.4 W/mK (silicone rubber base value)

Color
Gray

Max Withstanding Temperature
-40C to +110C

Weight
2.2 kg (approximate)

Tracking & Erosion Resistance
Excellent

Min. Arc Distance
320 mm

Temperature Range
-40C to +110C

Hardware Material
Hot-dip galvanized steel fittings

Cantilever Strength
5-12 kN

Power Frequency Dry Withstand Voltage
110 kV

Impulse Withstand Voltage
170 kV

Flame Retardant
Yes

Power Frequency Wet Withstand Voltage
85 kV

Creepage Distance
900 mm (typical for 33 kV insulators)

About 33 kV Pin Polymer Insulator

Take advantage of this rare opportunity to secure supreme reliability for your power transmission network with our 33 kV Pin Polymer Insulator. Crafted with opulent precision, it features a 900 mm creepage distance, optimum tensile strength of over 10 kN, and hot-dip galvanized steel hardware. Designed for demanding conditions (-40C to +110C), this lightweight, flame-retardant insulator ensures exceptional tracking and erosion resistance. Limited stock available-its anti-tracking, hydrophobic, UV resistant coating, and robust silicone rubber housing make it ideal for overhead transmission and distribution lines. Enhance system longevity-order now!

Features & Uses of 33 kV Pin Polymer Insulator

Engineered for optimum performance, the 33 kV Pin Polymer Insulator boasts high mechanical strength, supreme flame retardance, and excellent anti-tracking properties. Its rare combination of lightweight build and high tensile capacity makes it perfect for overhead transmission and distribution lines. This insulator thrives in harsh environments, delivering reliable power distribution and system protection in general use as well as specific high-voltage applications. Its installation is straightforward, adhering to top industry guidelines, making it suitable for diverse utility requirements.

Premium Supply & Market Value: Domestic Distribution

We hand over each 33 kV Pin Polymer Insulator with optimum care, offering premium packaging solutions to ensure product integrity during transit. This product holds a significant market value in India due to its advanced engineering and flawless utility in power sectors. Our supply ability ensures prompt fulfillment of domestic market demands. Each unit is carefully packed and promptly delivered, giving you confidence in sourcing from a trusted manufacturer and supplier with years of expertise in the field.

FAQ's of 33 kV Pin Polymer Insulator:

Q: How is the 33 kV Pin Polymer Insulator installed?

A: The 33 kV Pin Polymer Insulator should be mounted on the pin, and all hardware should be tightened according to the manufacturer's recommended torque specifications for a secure fit.

Q: What is the primary benefit of using this polymer insulator in power lines?

A: This insulator provides supreme mechanical strength, exceptional tracking and erosion resistance, and optimum hydrophobic properties, ensuring reliable performance in overhead transmission and distribution lines.

Q: Where can this 33 kV Pin Polymer Insulator be used?

A: It is ideal for use in overhead power transmission and distribution lines, specifically designed to perform in environments requiring 33 kV rated voltage insulation.

Q: What are the packaging details for this insulator?

A: Each insulator is handover in premium, secure packaging, preserving the product's integrity during delivery and storage for the domestic market.

Q: How does the product withstand extreme temperatures?

A: Constructed with silicone rubber housing and a fiberglass core, the insulator reliably operates in a temperature range from -40C to +110C, making it suitable for various climates.

Q: What process ensures the anti-tracking and hydrophobic features?

A: The insulator's surface is treated with a UV resistant silicone coating, providing excellent tracking resistance and hydrophobicity, even under adverse weather conditions.
