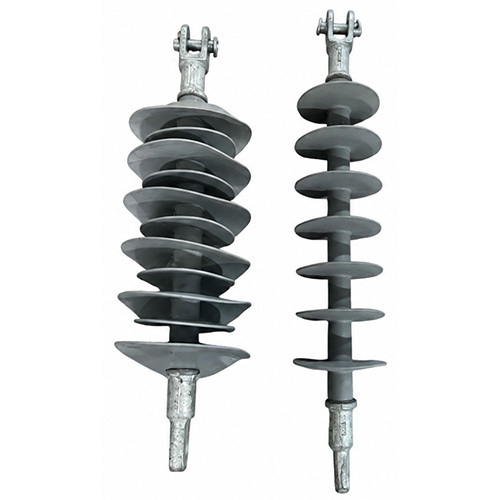

Send Inquiry33 kV Disc Polymer Insulator T-C
33 kV Disc Polymer Insulator T-C Specification
- Layer
- Single polymeric layer with internal FRP rod
- Density
- 1.5 Gram per cubic centimeter(g/cm3)
- Size
- Typical lengths 250-300 mm
- Surface Treatment
- Hydrophobic Polymer Coating
- Coating Type
- Silicone Rubber Weather Resistant Coating
- Installation Guideline
- Install vertically using clevis and tongue fittings
- Thermal Conductivity
- Very Low (Electrical Insulator)
- Feature
- Anti-tracking, Lightweight, UV Resistant
- Product Type
- Disc Polymer Insulator T-C
- Material
- Silicone Rubber, FRP (Fibre Reinforced Plastic), Galvanized Steel End Fittings
- Rated Voltage
- 33 kV
- Tensile Strength
- > 60 kN
- Width
- Approx. 180 mm (disc diameter)
- Thickness
- Varies, approx. 45-60 mm (shed thickness)
- Application
- Overhead Transmission Line Insulation
- Breakdown Voltage
- >100 kV (dry, withstand)
- Heat Conductivity
- Low (suitable for electrical insulation)
- Color
- Grey
- Max Withstanding Temperature
- -40C to +120C
- Hydrophobicity
- Excellent (self-cleaning surface)
- Service Life
- 30+ years under normal use
- Standards
- IEC 61109, IS 14268
- Mounting Position
- Suspension or tension in transmission lines
- Corrosion Resistance
- High, suitable for polluted environments
- End Fitting Type
- Tongue & Clevis (T-C)
- Mechanical Failing Load
- 70 kN
- Impulse Withstand Voltage
- > 170 kV
- Power Frequency Withstand Voltage (Dry/Wet)
- > 85 kV / 70 kV
- Weight
- 2.5 - 4 kg (approx.)
- Creepage Distance
- 900-1000 mm
- UV Resistance
- Excellent, for outdoor use
About 33 kV Disc Polymer Insulator T-C
Get your hands on the new release-our 33 kV Disc Polymer Insulator T-C, the masterpiece engineered for overhead transmission lines. Scarce in its class, it features a sublime creepage distance of 900-1000 mm and a lavish self-cleaning hydrophobic surface, offering unmatched reliability. Boasting high mechanical failing load (70 kN), extraordinary corrosion and UV resistance, and stringent adherence to IEC 61109 and IS 14268 standards, this insulator is perfect for hostile environments. Its lightweight yet robust design ensures seamless installation, optimal performance, and decades of service even in severe polluting atmospheres. Elevate your power infrastructure with a scarce and enduring solution.
Application Excellence and Surface Performance
The 33 kV Disc Polymer Insulator T-C is crafted for suspension and tension mounting in high-voltage transmission lines, perfectly suited for both polluted urban and rural exteriors. Its anti-tracking, self-cleaning silicone rubber surface ensures outstanding hydrophobicity and reliable insulation under the harshest conditions. Competitive advantages include a lightweight build, superior UV and corrosion resistance, and a lavish service life of over 30 years, making it an unmatched choice for transmission line insulation across diverse environments.
Sample Availability and Delivery Benefits
Samples of our 33 kV Disc Polymer Insulator T-C can be promptly dispatched across India, ensuring you experience sublime product quality before full-scale procurement. We offer the lowest price guarantee combined with secure payment terms and swift nationwide delivery. Our main domestic market includes all major industrial and utility sectors, assuring timely and safe arrivals of each masterpiece product at your site, maximizing convenience and cost-effectiveness for all clients.
Application Excellence and Surface Performance
The 33 kV Disc Polymer Insulator T-C is crafted for suspension and tension mounting in high-voltage transmission lines, perfectly suited for both polluted urban and rural exteriors. Its anti-tracking, self-cleaning silicone rubber surface ensures outstanding hydrophobicity and reliable insulation under the harshest conditions. Competitive advantages include a lightweight build, superior UV and corrosion resistance, and a lavish service life of over 30 years, making it an unmatched choice for transmission line insulation across diverse environments.
Sample Availability and Delivery Benefits
Samples of our 33 kV Disc Polymer Insulator T-C can be promptly dispatched across India, ensuring you experience sublime product quality before full-scale procurement. We offer the lowest price guarantee combined with secure payment terms and swift nationwide delivery. Our main domestic market includes all major industrial and utility sectors, assuring timely and safe arrivals of each masterpiece product at your site, maximizing convenience and cost-effectiveness for all clients.
FAQ's of 33 kV Disc Polymer Insulator T-C:
Q: How should the 33 kV Disc Polymer Insulator T-C be installed for optimal performance?
A: For best results, the insulator should be installed vertically using the supplied tongue and clevis end fittings, guaranteeing secure suspension or tension on overhead transmission lines.Q: What are the main benefits of the hydrophobic polymer surface?
A: The hydrophobic (self-cleaning) surface repels water and dust, significantly reducing maintenance needs and improving electrical performance, even under severe pollution and weather conditions.Q: Where can the 33 kV Disc Polymer Insulator T-C be used most effectively?
A: This insulator excels in outdoor, high-pollution areas such as urban, coastal, and industrial environments, where its high UV and corrosion resistance provide a significant advantage.Q: What certifications and standards does the insulator comply with?
A: The product adheres to IEC 61109 and IS 14268 international standards, ensuring its reliability and quality in critical power transmission applications.Q: Is it possible to request a product sample before large-scale procurement?
A: Yes, product samples are available and can be dispatched promptly for quality assessment prior to placing bulk orders.Q: How long is the expected service life of this polymer insulator?
A: Under normal usage, the insulator offers a lavish service life of over 30 years, making it a durable and long-term solution for your transmission network.
